詳細說明

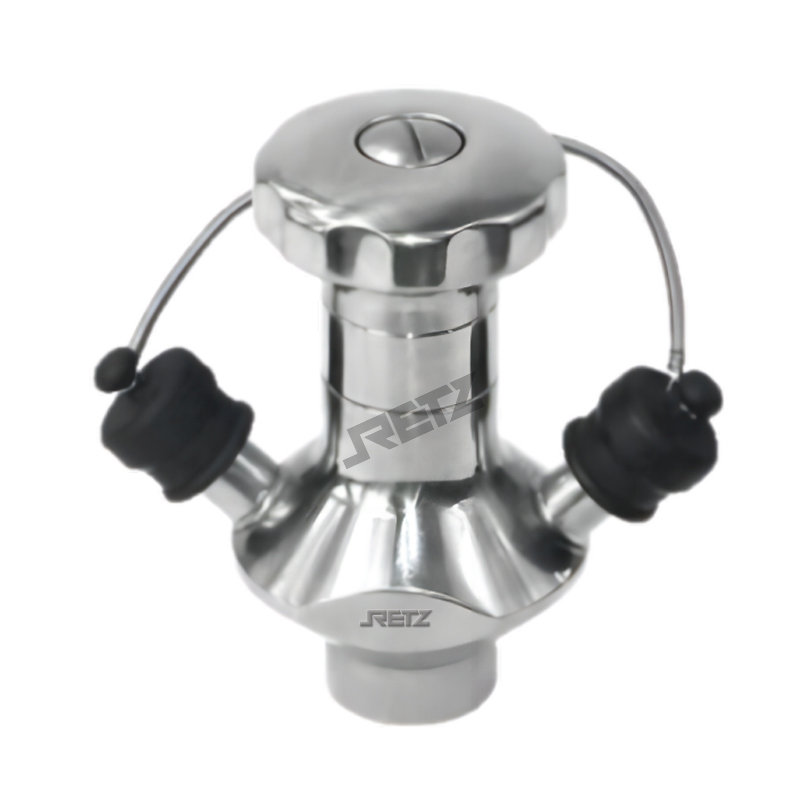

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口自復位無菌取樣閥每次取樣前和取樣后進行殺菌，適用于啤酒、牛奶、飲料、果汁、制藥等行業 Retz imported self resetting sterile sampling valve for sterilization before and after each sampling, suitable for industries such as beer, milk, beverages, juice, pharmaceuticals, etc
進口自復位無菌取樣閥開啟閥門：取樣-通過旋轉手輪開啟閥門 Opening the valve: Sampling - Opening the valve by rotating the handwheel
進口自復位無菌取樣閥關閉閥門：消毒-松開自動復位，關閉閥門，保持軟管間的通道開啟，用于消毒。如果使用蒸汽，建議在出口裝一個小型的壓力安全閥 Close the valve: Disinfect - release the automatic reset, close the valve, and keep the passage between the hoses open for disinfection. If steam is used, it is recommended to install a small pressure safety valve at the outlet
滅菌：sterilization
1、將蒸汽軟管連接到閥的上部連接管上 Connect the steam hose to the upper connecting pipe of the valve
2、打開蒸汽源，讓它流過閥以進行滅菌。在121℃下持續1分鐘 Open the steam source and let it flow through the valve for sterilization. Continue at 121 ℃ for 1 minute
3、關閉蒸汽源 Turn off steam source
4、移走蒸汽軟管，把一個無菌橡膠塞或無菌蒙板安裝到上部連接管上 Remove the steam hose and install a sterile rubber stopper or sterile mask onto the upper connecting pipe
●規格SIZE:3/8 -2"
●最高溫度Max temperature：-20到130℃(取決于密封材質)(不銹鋼執行器)
●最高壓力Max pressure：10bar
●閥體材質material quality：SS304、 316L
●膜片材料Diaphragm：EPDM、PTFE
●連接方式Connection method：卡箍、焊接、罐體連接器、多通道管路連接器 Clamp, welding, can body connector, multi-channel pipeline connector
●操作方式operating mode：手動和氣動 Manual and pneumatic
富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
