品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口手動衛生級取樣閥適用于食品、制藥、生物技術乳品，酸奶，飲料，果汁，飲用水，植物蛋白飲料，啤酒，白酒，調味品，醬料，發酵，日化，個人護理等

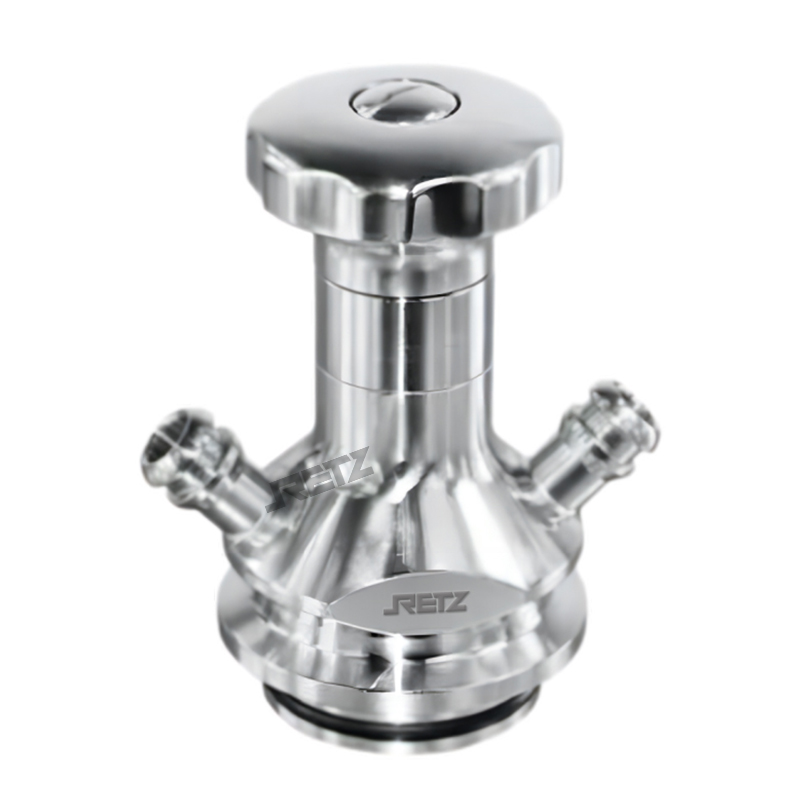

Retz imported manual sanitary sampling valve is applicable to food, pharmaceutical, biotechnology dairy products, yogurt, beverages, fruit juice, drinking water, vegetable protein drinks, beer, Baijiu, condiments, sauces, fermentation, daily chemicals, personal care, etc

衛生無污染,確保衛生和無污染采樣；工作原理簡單，易于操作；所有耐磨損零件操作高度可靠（額定壓力10巴）

Hygiene and pollution-free, ensuring hygiene and pollution-free sampling; The working principle is simple and easy to operate; Highly reliable operation of all wear-resistant parts (rated pressure 10 bar)

強化可清潔性,閥體由不銹鋼單件制成，可提供光滑、無縫隙的表面，消除細菌堆積的風險

Enhanced cleanliness, the valve body is made of single stainless steel parts, providing a smooth, seamless surface and eliminating the risk of bacterial accumulation

閥閉合：消毒 Valve closure: disinfection

當閥關閉時，打開閥口這間的通道以便進行消毒，如果使用蒸汽消毒，則建議在出口上使用小型壓力釋放閥 When the valve is closed, open the channel between the valve ports for disinfection. If steam disinfection is used, it is recommended to use a small pressure relief valve on the outlet

閥開啟：取樣 Valve opening: sampling

當閥打開時，閥桿和膜片密封將收縮，從而允許液體通過。通過使用標準附件，可能進行無菌取樣。這些附件專用于確保進行消毒時的條件合適（2bar-121℃）。絕熱材料可避免燙傷。

When the valve opens, the valve stem and diaphragm seal will contract, allowing liquid to pass through. By using standard attachments, sterile sampling may be performed. These accessories are specifically designed to ensure that the conditions for disinfection are suitable (2bar-121 ℃). Insulation materials can prevent burns

●規格SIZE:3/8 -2"

●溫度Max temperature：-20到130℃(取決于密封材質)(不銹鋼執行器)

●壓力Max pressure：10bar

●閥體材質material quality：SS304、 316L

●膜片材料Diaphragm：EPDM、PTFE

●連接方式Connection method：焊接、卡箍Welding, clamps

●操作方式operating mode：手動和氣動 Manual and pneumatic

RETZ的衛生級閥門可以滿足工控系統的截?cái)唷踩⒖刂啤崈舻目刂飘a(chǎn)品涵蓋了：進口衛生級隔膜閥、蝶閥、球閥、安全閥、截止閥、疏水閥、泵、取樣閥、電磁閥、電動閥、氣動閥、調節閥。

富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
