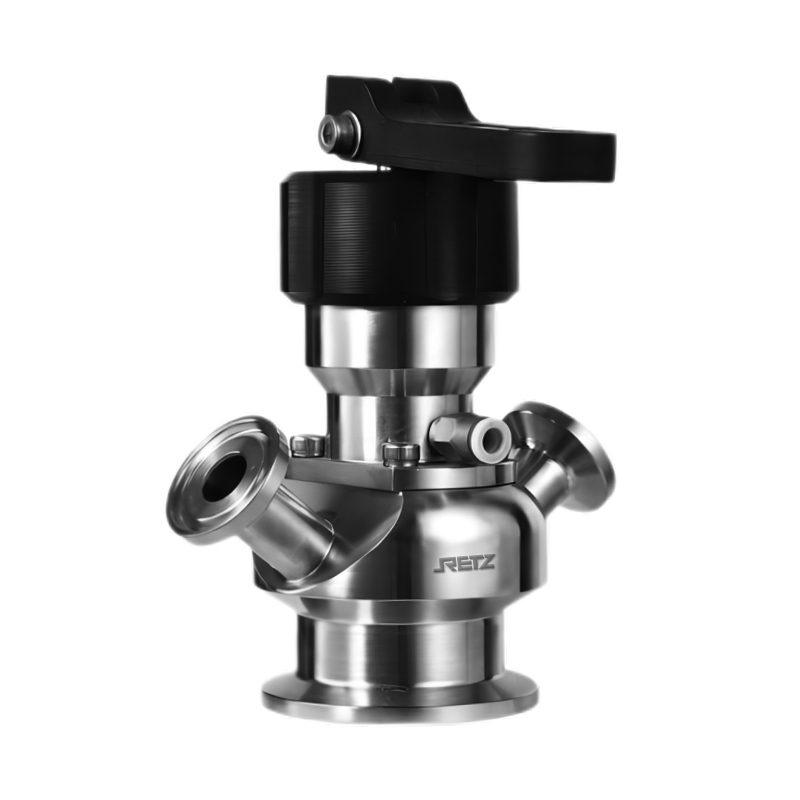

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口杠桿手柄無菌取樣閥每次取樣前和取樣后進行殺菌，適用于啤酒、牛奶、飲料、果汁、制藥等行業 The retz imported sterile sampling valve sterilizes before and after each sampling, suitable for industries such as beer, milk, beverages, juice, pharmaceuticals, etc
The retz imported sterile sampling valve sterilizes before and after each sampling, suitable for industries such as beer, milk, beverages, juice, pharmaceuticals, etc
開啟閥門：取樣-通過旋轉手輪開啟閥門 Opening the valve: Sampling - Opening the valve by rotating the handwheel
關閉閥門：消毒-松開自動復位，關閉閥門，保持軟管間的通道開啟，用于消毒。如果使用蒸汽，建議在出口裝一個小型的壓力安全閥 Close the valve: Disinfect - release the automatic reset, close the valve, and keep the passage between the hoses open for disinfection. If steam is used, it is recommended to install a small pressure safety valve at the outlet
滅菌：sterilization
1、將蒸汽軟管連接到閥的上部連接管上 Connect the steam hose to the upper connecting pipe of the valve
2、打開蒸汽源，讓它流過閥以進行滅菌。在121℃下持續1分鐘 Open the steam source and let it flow through the valve for sterilization. Continue at 121 ℃ for 1 minute
3、關閉蒸汽源 Turn off steam source
4、移走蒸汽軟管，把一個無菌橡膠塞或無菌蒙板安裝到上部連接管上 Remove the steam hose and install a sterile rubber stopper or sterile mask onto the upper connecting pipe
品牌：RETZ
●規格SIZE:3/8 -2"
●最高溫度Max temperature：-20到130℃(取決于密封材質)(不銹鋼執行器)
●最高壓力Max pressure：10bar
●閥體材質material quality：SS304、 316L
●膜片材料Diaphragm：EPDM、PTFE
●連接方式Connection method：卡箍、焊接、罐體連接器、多通道管路連接器 Clamp, welding, can body connector, multi-channel pipeline connector
●操作方式operating mode：手動和氣動 Manual and pneumatic
RETZ的衛生級閥門可以滿足工控系統的截斷、安全、控制、潔凈的控制產品涵蓋了：進口衛生級隔膜閥、蝶閥、球閥、安全閥、截止閥、疏水閥、泵、取樣閥、電磁閥、電動閥、氣動閥、調節閥 RETZ's sanitary valves can meet the requirements of cutoff, safety, control, and clean control in industrial control systems. The products include imported sanitary diaphragm valves, butterfly valves, ball valves, safety valves, globe valves, drain valves, pumps, sampling valves, solenoid valves, electric valves, pneumatic valves, and regulating valves
富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
