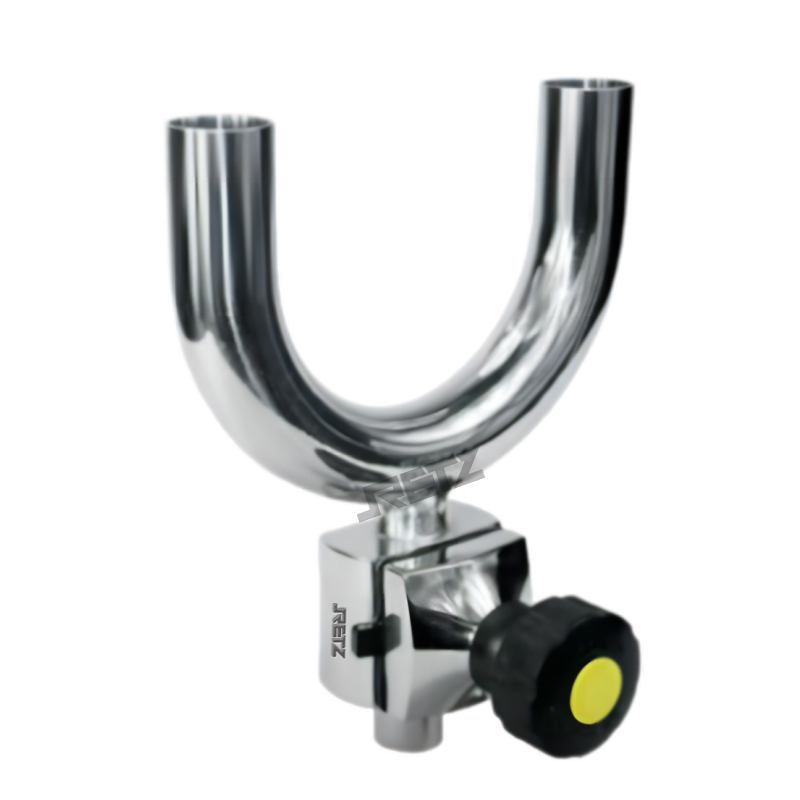

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口衛生級U型三通隔膜閥是管道衛生級潔凈閥門,應用于生物制藥、食品、飲料、精細化等行業的配料，可滿足無菌和超衛生加工領域所有要求retz The imported sanitary grade U-shaped three-way diaphragm valve is a pipeline sanitary grade clean valve used in industries such as biopharmaceuticals, food, beverages, and fine chemicals, meeting all requirements in the fields of aseptic and ultra hygienic processing

品牌：RETZ

●規格SIZE:1 -4"，DN25-DN100

●標準 BPE： 3A DIN ISO IDF

●溫度Max temperature：-20到150℃(取決于密封材質)(不銹鋼執行器)

●壓力Max pressure：10bar

●閥體材質material quality：ASTM 316L,1.4404,1.4435 NB2 Fe＜0.5%

●連接方式Connection method：焊接、卡箍、螺紋 Welding, clamps, threads

●操作方式operating mode：手動和氣動 Manual and pneumatic

●進口衛生級U型三通隔膜閥閥體結構structure：U型三通+取樣閥、U型三通

RETZ的衛生級閥門可以滿足工控系統的截斷、安全、控制、潔凈的控制產品涵蓋了：進口衛生級隔膜閥、蝶閥、球閥、安全閥、截止閥、疏水閥、泵、取樣閥、電磁閥、電動閥、氣動閥、調節閥

富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
