品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口衛生級氣動隔膜閥是管道衛生級潔凈閥門,應用于生物制藥、食品、飲料、精細化等行業的配料、容器放料使用，通過氣動執行器的動作控制閥門隔膜片的開啟、關閉，可擴展配置智能控制器C-TOP、定位器IL-TOP、位置反饋器F-TOP等，滿足自動控制多種需求

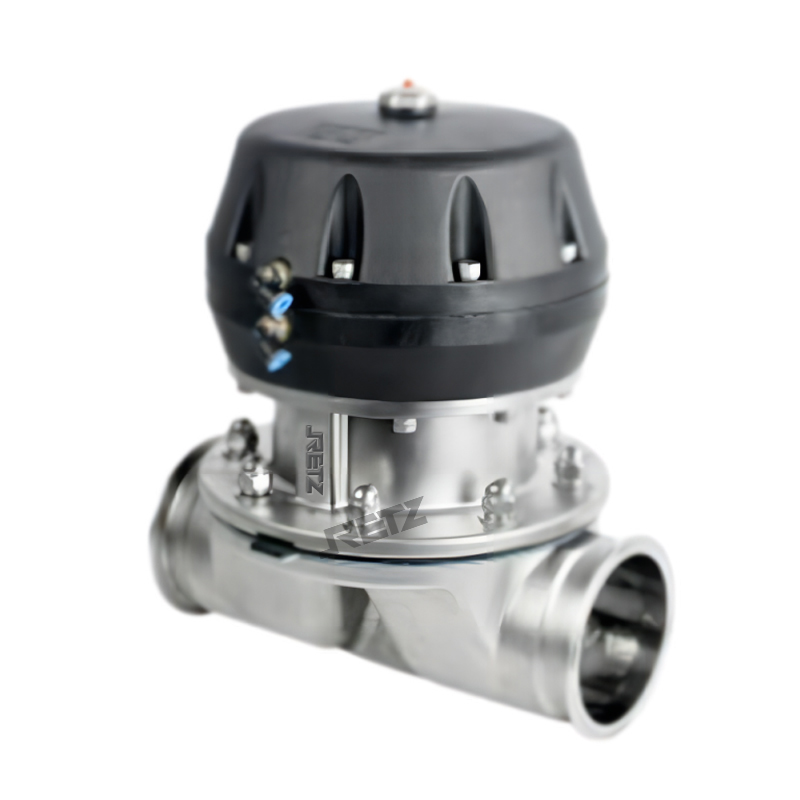

retz The imported sanitary grade pneumatic diaphragm valve is a pipeline sanitary grade clean valve used in industries such as biopharmaceuticals, food, beverages, and fine chemicals for ingredient and container discharge. The opening and closing of the valve diaphragm are controlLED by the action of the pneumatic actuator, and the intelligent controller C-TOP, locator IL-TOP, position feedback F-TOP, etc. can be extended to meet various needs of automatic control

●規格SIZE:1 -4"，DN25-DN100

●標準 BPE： 3A DIN ISO IDF

●溫度Max temperature：-20到150℃(取決于密封材質)(不銹鋼執行器)

●壓力Max pressure：10bar

●閥體材質material quality：ASTM 316L,1.4404,1.4435 NB2 Fe＜0.5%

●連接方式Connection method：焊接、卡箍、螺紋 Welding, clamps, threads

●操作方式operating mode：手動和氣動 Manual and pneumatic

RETZ的衛生級閥門可以滿足工控系統的截?cái)唷踩⒖刂啤崈舻目刂飘a(chǎn)品涵蓋了：進口衛生級隔膜閥、蝶閥、球閥、安全閥、截止閥、疏水閥、泵、取樣閥、電磁閥、電動閥、氣動閥、調節閥

富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
