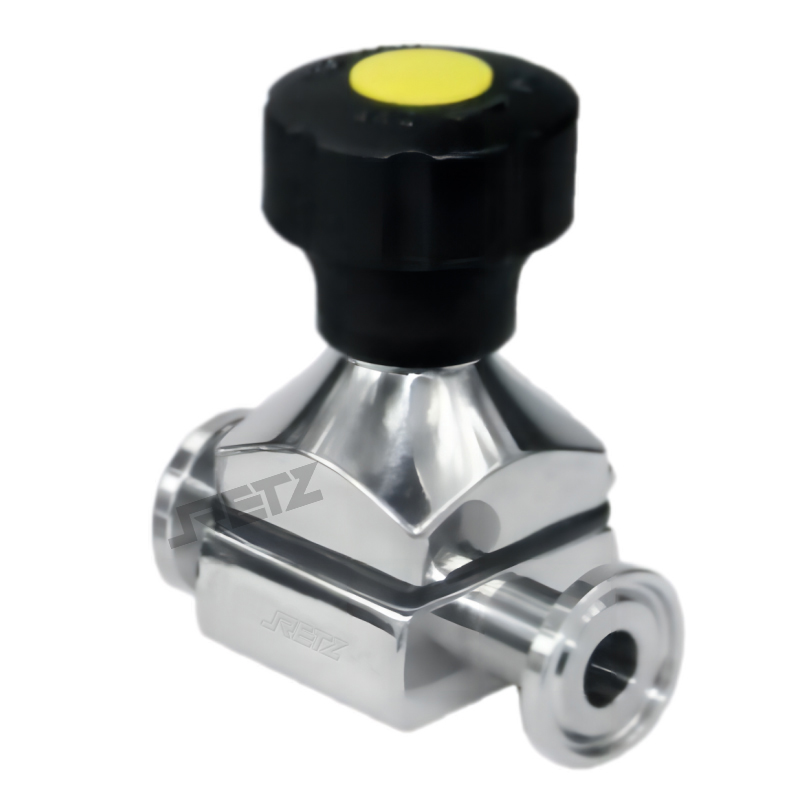

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口衛生級取樣隔膜閥應用在制藥或飲料等灌裝設備具有特別的優勢，在3bar工作壓力時，啟閉次數可達到150萬次壽命，主要應用在料液取樣、生物系統、化驗室等工程上

retz  The application of imported sanitary grade sampling diaphragm valves in filling equipment such as pharmaceuticals or beverages has special advantages. At a working pressure of 3 bar, the opening and closing times can reach 1.5 million times, with a service life. It is mainly used in engineering such as material sampling, biological systems, and laboratories

●進口衛生級取樣隔膜閥規格SIZE:1/4 "-3/4"，DN6-DN15

●標準 BPE： 3A DIN ISO IDF

●溫度Max temperature：-20到150℃(取決于密封材質)(不銹鋼執行器)

●壓力Max pressure：單向(DELTA P=100%)

常閉橡膠8bar,PTFE 6bar(選項)

常閉橡膠6bar，PTFE 4.5bar(標準)

常開和雙作用橡膠8bar，PTFE 6bar

●閥體材質material quality：1.4404/316L

●連接方式Connection method：焊接、卡箍、螺紋 Welding, clamps, threads

●操作方式operating mode：手動和氣動 Manual and pneumatic

RETZ的衛生級閥門可以滿足工控系統的截斷、安全、控制、潔凈的控制產品涵蓋了：進口衛生級隔膜閥、蝶閥、球閥、安全閥、截止閥、疏水閥、泵、取樣閥、電磁閥、電動閥、氣動閥、調節閥
